Introduction
AlphaFold2 mattered because protein folding was not just another sequence problem. A normal Transformer can learn that one token relates to another, but a folded protein is a three-dimensional object: amino acids that are far apart in the written sequence may end up touching in space. AlphaFold2 therefore needed specialised attention mechanisms that could reason not only over amino-acid positions, but also over pairs of residues and the geometric consistency between them.
Its key lesson for artificial intelligence is that Transformer ideas travel well, but not unchanged. AlphaFold2 used attention inside a biology-specific architecture, especially its Evoformer module, to pass information between multiple sequence alignments and pairwise residue representations. That let the system build and refine a structural hypothesis rather than merely read a protein sequence like text. DeepMind’s AlphaFold2 paper described these Evoformer mechanisms as enabling direct reasoning about spatial and evolutionary relationships, and CASP14 results showed how powerful that shift became in practice. [Nature]nature.comHighly accurate protein structure prediction with AlphaFoldby J Jumper · 2021 · Cited by 51085 — The key innovations in the Evoform…
Why distant amino acids make folding different
A protein begins as a chain of amino acids, but its biological function depends heavily on how that chain folds. The hard part is that sequence distance and physical distance are not the same thing. Two residues may be hundreds of positions apart in the amino-acid string yet become neighbours when the molecule folds. A model that only treats the protein as a left-to-right sequence risks missing exactly the relationships that determine the final shape.
This is where folding differs from ordinary language modelling. In text, long-range dependencies matter, but the output is still usually interpreted as a sequence. In protein folding, the model has to infer a spatial arrangement: which residues are near each other, which orientations are plausible, and which contacts fit together across the whole molecule. AlphaFold2 addressed this by predicting three-dimensional atomic coordinates from the amino-acid sequence, aligned homologous sequences, and, where useful, structural templates. [Nature]nature.comHighly accurate protein structure prediction with AlphaFoldby J Jumper · 2021 · Cited by 51085 — The key innovations in the Evoform…
The CASP14 benchmark made the difference visible. AlphaFold2 achieved a median overall GDT score of 92.4, a level DeepMind described as comparable to experimental accuracy for many targets, with an approximate average RMSD error of 1.6 Å. Independent CASP-linked reviews similarly described the result as a qualitative leap in the history of protein-structure prediction. [Google DeepMind]deepmind.googlealphafold a solution to a 50 year old grand challenge in biologyGoogle DeepMindAlphaFold: a solution to a 50-year-old grand challenge in…30 Nov 2020 — In the results from the 14th CASP assessment, r…
How pairwise relationships changed the task
AlphaFold2’s crucial move was to represent not only residues, but residue pairs. Instead of asking only “what does this amino acid mean in this sequence?”, the model also asked “what is the relationship between residue i and residue j?” That pair representation is naturally suited to folding because distances, contacts, orientations and relative positions are all pairwise or geometry-sensitive facts.

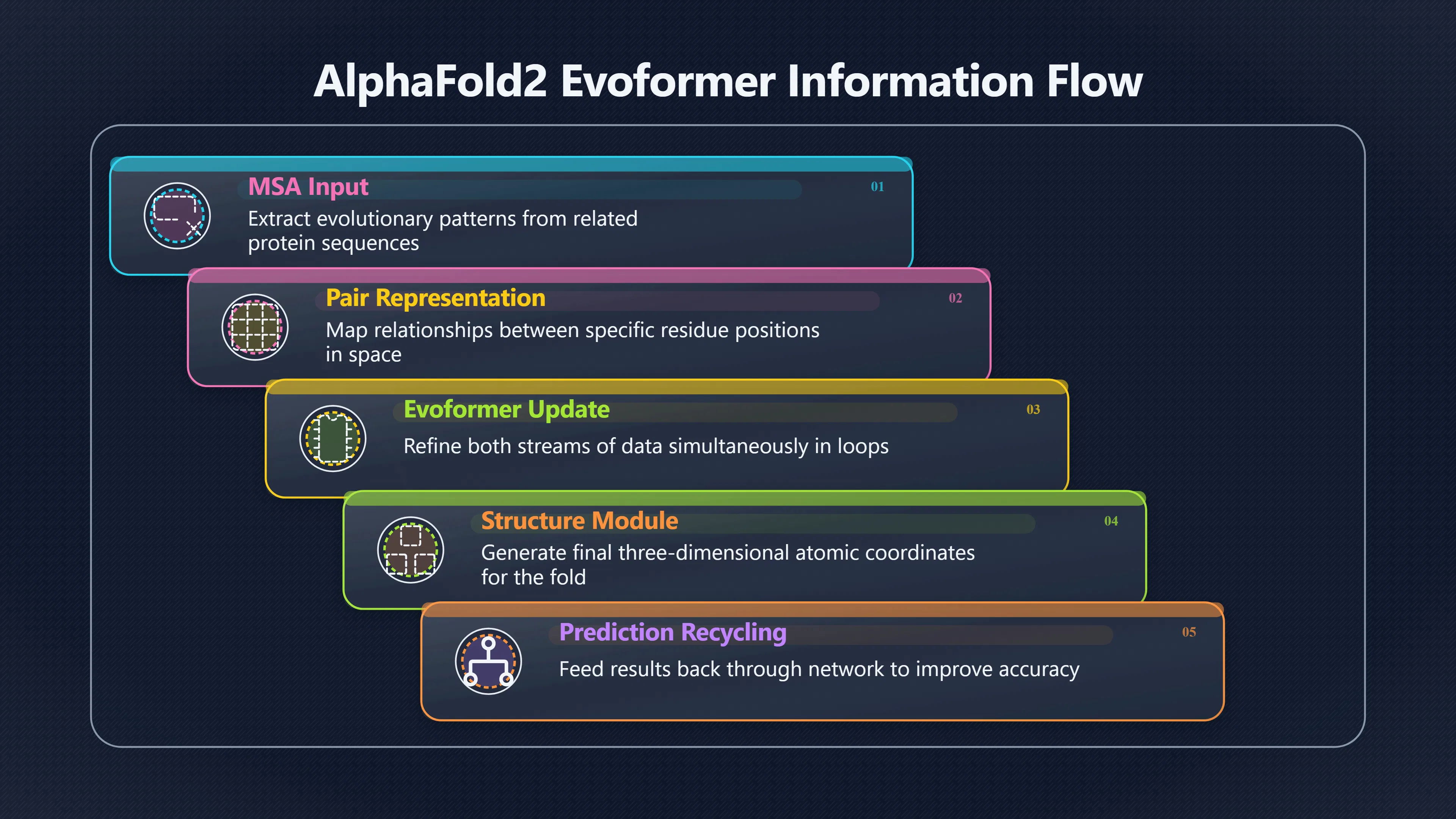

The Evoformer module updated two streams of information together: a multiple sequence alignment representation, which carries evolutionary patterns from related proteins, and a pair representation, which carries information about relationships between positions in the target protein. The European Bioinformatics Institute’s AlphaFold training material describes this as a continuous flow of information between MSA and pair representations, allowing the model to refine a structural hypothesis. [EMBL-EBI]ebi.ac.ukThis interprets and updates both the MSA and the pair representations. The important aspect of this network…Read more…
That design matters because evolution leaves clues. If two residues interact physically, mutations at one position may be compensated by mutations at another across related proteins. Earlier methods often used such correlations to infer contacts, but AlphaFold2 made the inferred pair relationships part of the model’s internal reasoning loop rather than just a final prediction target. Oxford’s BLopig explanation captures this shift well: in Evoformer, the pair representation is both an intermediate layer and a developing structural hypothesis that feeds back into sequence interpretation. [Blopig]blopig.comAlphaFold 2 is here: what's behind the structure prediction…19 Jul 2021 — In the Evoformer, instead, the pair representation is…
Why AlphaFold2 needed triangle-style attention
Pairwise information alone is still not enough. A predicted relationship between residue A and residue B must be consistent with relationships involving other residues. If A is close to B, and B is close to C, the model has to learn whether the implied geometry makes sense for A, B and C together. This is why AlphaFold2 used specialised triangular operations in the pair representation.
Triangle attention and triangle multiplicative updates let the model reason over triplets of residues rather than isolated pairs. In plain terms, they help the network ask whether one proposed residue relationship fits with the surrounding web of other relationships. This is closer to reasoning over a folded spatial graph than reading a sentence from left to right. Technical summaries of the AlphaFold architecture describe these triangle operations as the way the pair representation is updated to maintain geometric consistency between residue relationships. [uvio.bio]uvio.bioAlpha Fold ArchitectureAlpha Fold Architecture
This is a major reason AlphaFold2 is not simply “a Transformer for proteins”. It borrowed attention’s core idea — dynamically deciding which elements should influence one another — but rebuilt it around the structure of the folding problem. The attention did not just compare amino-acid tokens. It helped maintain a map of possible residue-residue relationships as that map became more like a three-dimensional fold.
What AlphaFold2 shows about Transformer portability
AlphaFold2 is one of the clearest examples of both the power and the limit of Transformer portability. The power is that attention can be adapted to radically different domains: words, image patches, amino acids and residue pairs can all become objects of learned relationship modelling. The limit is that successful transfer often requires domain-specific structure.
For protein folding, the right inductive bias was not grammar-like sequence modelling alone. It was an architecture that combined evolutionary signals, pairwise residue geometry, triangular consistency checks, recycling of predictions, and a final structure module that explicitly generated three-dimensional coordinates. EBI’s AlphaFold overview notes that AlphaFold2 recycles its MSA, pair representations and predicted structure back through the network to improve the final model. [EMBL-EBI]ebi.ac.ukThis interprets and updates both the MSA and the pair representations. The important aspect of this network…Read more…
That is the broader AI lesson. Transformers did not move from text to proteins by pretending proteins were sentences in every respect. They moved by preserving the useful general mechanism — attention over relationships — while changing the representation to match the scientific problem. In AlphaFold2, smarter attention meant attention that could think in pairs, triangles and spatial constraints, because that is what folding demands.
